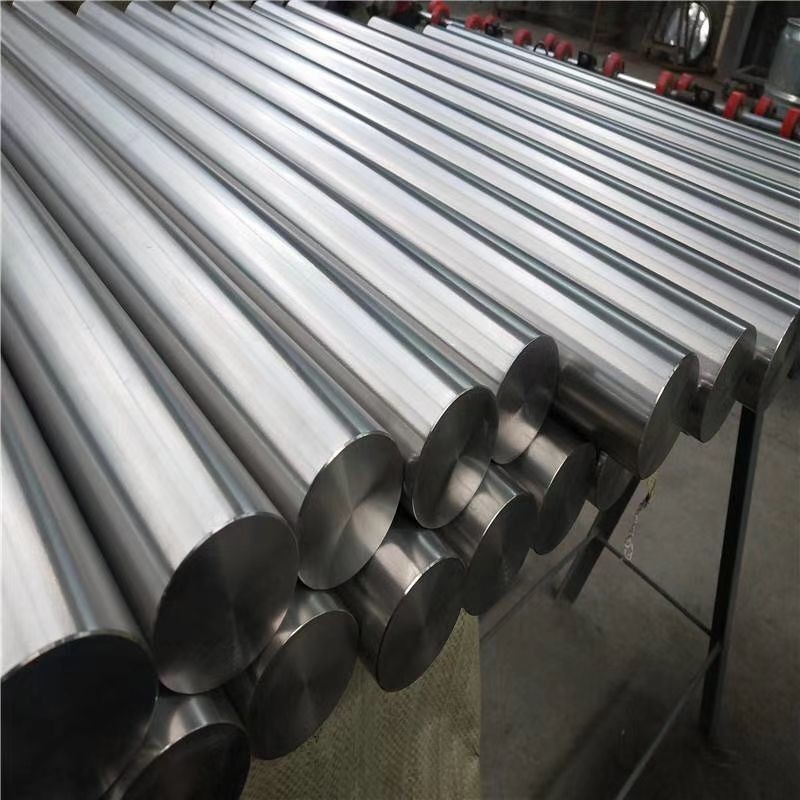

Titanium Gr5 Bar AMS 4928 Aerospace use Ti-6Al-4V bar
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDelivery Time | 7-10 Days | Materials | Titanium |
---|---|---|---|
Grade | Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11 | Diameter | 3-600mm |
Surface | Polished, Pickling | MOQ | 50KG |
Standard | ASTM B348,AMS 4904,ASTM F67,ASTM F136 | Technical | Forged |
High Light | 100mm titanium round bar,gr23 titanium round bar,ASTM F136 3mm diameter rod |
Descriptions of Titanium Gr5 Bar AMS 4928
-Titanium Gr5 Bar AMS 4928, Titanium Ti-6Al-4V(Grade5), Ti-6Al-4V bar AMS 4928, Annealed AMS4928
-Subcategory: Alpha/Beta Titanium Alloy; Metal;Nonferrous Metal;Titanium Alloy
-Key Words of Titanium Gr5 Bar AMS 4928:Ti-6-4;UNS R56400;ASTM Grade 5 titanium;UNS R56401(ELI);Ti6Al4Vbiomaterials, biomedical implantsbiocompatibility, Ti-6Al-4V bar AMS 4928.
-Material Notes: Information provided by Allvac and the references.Annealing Temperature 700-785C, Alpha-Beta Alloy.
-Applications of Titanium Gr5 Bar AMS 4928:Blades,discs,rings,airframesfastenerscomponents.Vesselscases,hubs, forgings. Biomedical implants.
-Available specification of our Titanium Gr5 Bar AMS 4928
-Biocompatibility: Excellent,especially when direct contact with tissue or bone is required.Ti-6Al-4V bar AMS 4928 's poo shear strenath makes it undesirable for bone screws or platesIt also has poor surface wear properties and tends to seize when in sliding contact with itself and other metals.Surface treatments such as nitriding and oxidizing can improve the surface wear properties.
Specification of our available Titanium Gr5 Bar AMS 4928
Dia: 5-600mm
Length:1000-6000mm
State: Annealed Titanium Gr5 Bar AMS 4928
Surface: Polished Ti-6Al-4V bar AMS 4928
Titanium Gr5 Bar AMS 4928, Gr5 (Titanium 6 aluminum 4 vanadium) is generally considered to be the "base" of the titanium industry because it is by far the most widely used titanium alloy, more than 50% of the total amount of titanium. It is an α+β alloy that can be heat treated to achieve moderate strength. Titanium 6 Aluminum-4 vanadium Ti-6Al-4V bar AMS 4928 is recommended for use at temperatures not exceeding 350℃/660℉. Titanium 6 aluminum 4 vanadium with good hardness, lightweight, forging, and corrosion resistance characteristics, widely used in the aviation industry.
Titanium Gr5 Bar AMS 4928 's Physical Properties and Chemical Composition
Physical Properties |
|||
Grade |
Tensile stength MPA/min |
Yield strength MPA/min |
Elongation %/mim |
Gr5/Ti-6al/4v |
950 |
880 |
14 |
Composition |
||||||
Grade |
Fe Max |
O Max |
N Max |
H Max |
Al Max |
Va Max |
/ |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Gr5/Ti-6al/4v |
0.25 |
0.2 |
0.03 |
0.015 |
6 |
4 |
Ti |
90 |
Application of Titanium Gr5 Bar AMS 4928 used in aerospace
Titanium Gr5 Bar AMS 4928 is used extensively in aerospace applications due to its high strength-to-weight ratio, corrosion resistance, and ability to withstand extreme temperatures. Ti-6Al-4V bar AMS 4928 can be found in aircraft and spacecraft components, such as landing gear, airframes, engines, turbine blades, and fasteners. Titanium Gr5 Bar AMS 4928 is also used in aerospace coatings to protect against corrosion and oxidation. Additionally, Ti-6Al-4V bar AMS 4928 is used in aircraft windows and windshields to provide strength and transparency.
