Gr1 CNC Titanium Flat Welding Flange PN0.25 To 32Mpa For Connect Pipes
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHANGSHENG |
| Certification | ISO9000:2015 |
| Model Number | GR1 GR2 GR5 GR7 GR12 |
| Minimum Order Quantity | 10 pcs |
| Price | According to quantity |
| Packaging Details | Clients’ requirement |
| Delivery Time | 20 working days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Strength, Lightweight, Corrosion Resistance, Low Thermal Expansion, Non-magnetic | Grade | Gr1/Gr2/Gr5/Gr7/Gr12 |
|---|---|---|---|
| Quality Control | Professional Inspection | Processing | CNC Machining, Forging, Casting, Etc. |
| Rolling Process | Hot Rolled, Cold Rolled | Shape | Flat Flanges |
| Production Standards | ASTM B381, ASME B16.5, And ASME B16.47. | Technique | Forged, Welded |
| Highlight | 32Mpa Titanium Flat Welding Flange,Gr1 CNC Titanium Flat Welding Flange,PN0.25 Titanium Flat Welding Flange |
||
Product Description

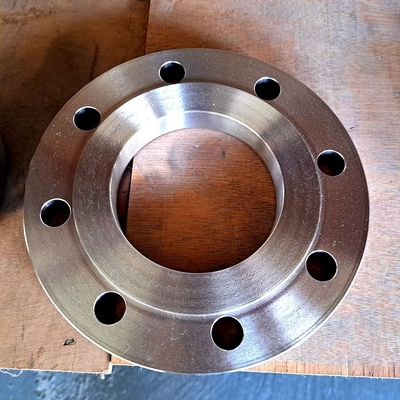

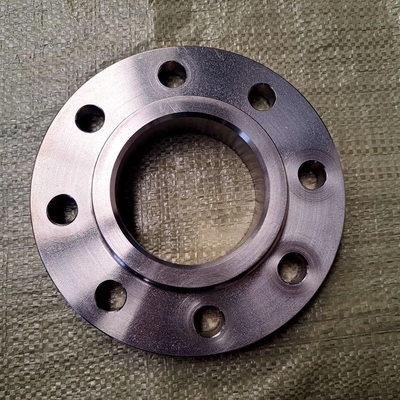

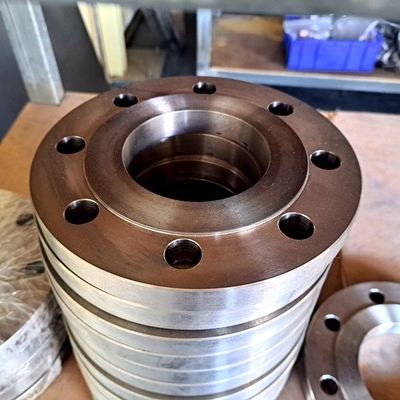

Gr1 CNC Titanium Flat Welding Flange PN0.25 to 32Mpa for connect pipes
A titanium flat welding flange is a type of flange connected to a container or pipeline by a fillet weld, offering a versatile connection option. Depending on the design's assessment of the integrity between the flange ring and the straight section, it can be evaluated as either an integral or a loose flange. These flanges are available in two variations: with a neck and without a neck. Compared to neck butt welding flanges, flat welding flanges have a simpler structure and are more material-efficient. They are widely used in the connection of medium and low-pressure vessels and pipelines.
Specification
| Material Grade | Gr1, Gr2, Gr5, Gr7, Gr12 |
| Certification | ISO9001:2008 BV |
| Standard | ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 |
| Size | 1/2~ 30NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
| Pressure Clase | PN0.25~32Mpa |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB | |
| Technique | Forged and CNC Machined |
| Advantage | 1. Long service life |
| 2. corrosion -resistant | |
| 3. high yelled strength and tensile strength. |
**Application**
A titanium flat welding flange is a component made of titanium used to connect pipes. It is attached to the pipe end and features holes for bolts, which secure two titanium flanges together tightly. The seal is achieved using gaskets. The flange connection consists of a pair of titanium flat welding flanges, a gasket, and several bolts and nuts. This type of connection is widely used in the following applications:
- Medium and low-pressure vessels
- Pipeline connections in various industries
- Systems requiring robust and reliable sealing solutions
- Environments where material efficiency and simple structure are advantage.
