Titanium Tube Coil Anticorrosion Heat Exchanger Immersed Cooling Coil
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Immersed Cooling Coil |
| Minimum Order Quantity | 1 piece |
| Price | USD 45.0/pc - USD 190/pc |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Immersed Cooling Coil | Material | Titanium Tube |
|---|---|---|---|
| Specification | Custom, By Drawings | Tube Wall Thickness Of Tubes | 0.5mm To 10mm |
| Surface | Acid Washing/Pickling Surface | Coil Shape | Helical Coils,U-Shape,Tube In Tube Coils, Serpertine Coils,etc. |
| Standard | ASTM B338, ASTM B337, ASTM B861, ASTM B862 | Application | Cryogenic Vessel, Heat Exchanger, Reactor, Electroplating |
| Origin | Baoji City, China | Sample | Bespoke Samples As Client's Request |
| Highlight | Titanium Immersed Cooling Coil,Anticorrosion Titanium Tube Coil,Titanium Heat Exchanger Coil |
||
Product Description

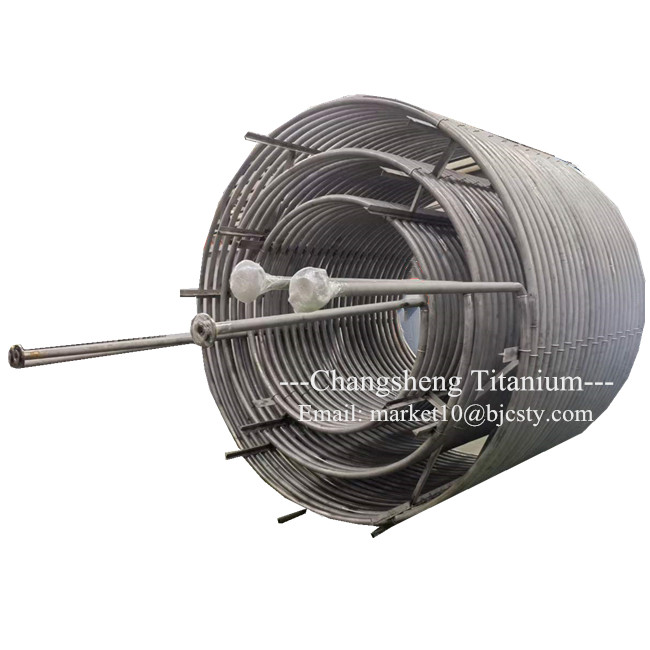

Titanium Tube Coil Anticorrosion Heat Exchanger Immersed Cooling Coil
The biggest diferences between titanium tube coil and stainless steel tube coil are based on the light weight and corrosion resistance properties of titanium metal matetial tubes. Titanium has a density of only 4.51, which is smaller than steel and only half the weight of steel.The corrosion resistance of titanium is quite good. Therefore, titanium tube coil is more suitable for the use in seawater desalination, chemical acid and alkali, and nuclear power equipment than stainless steel pipe, titanium coil tubing is used a lot in the heat exchanger as heat exchange element. Custom Titanium immersed cooling coil are the popular coils we have fabricated and selling for our clients.
Titanium Tube Coil Specifications:
Specifications: custom coils, bespoke coils, can be fabricated by drawings
Tube Wall thickness: 0.5mm to 4.5mm
Length: 15m or more or less
Joint: Threaded, flanges, or as request
Temperature range: -50°C to 200°C
Working pressure: 5.0Mpa
Aplications: Water tank, oil tank, boiler, condenser, evaporator, heat exchanger unit, electroplating chiller, marine & reef tanks, absorption type refrigerator, swimming pool heat exchangers, turbo refrigerator and screw refrigerators, distillation facility with multiple effects etc.
Titanium Tube Coil Quality Control:
Major parts material chemical compostion analysis
Major parts material mechanical properties analysis
Hydrostatic testing
Penetrant testing(PT testing)

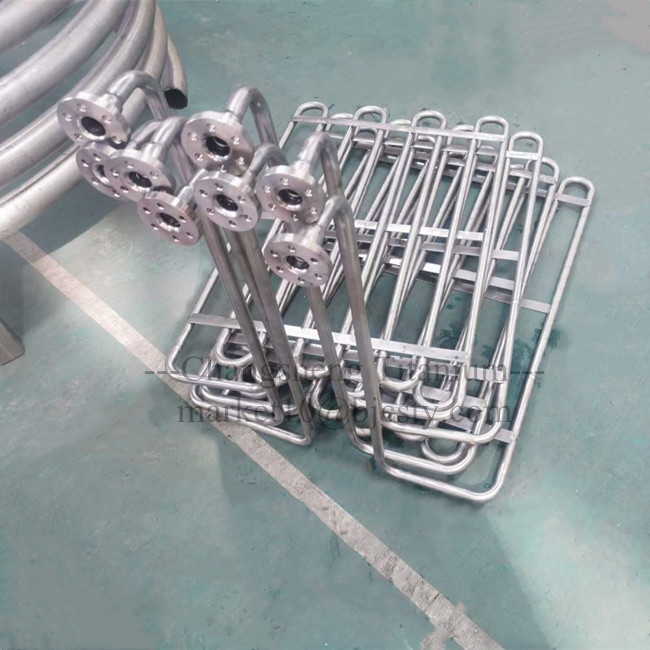

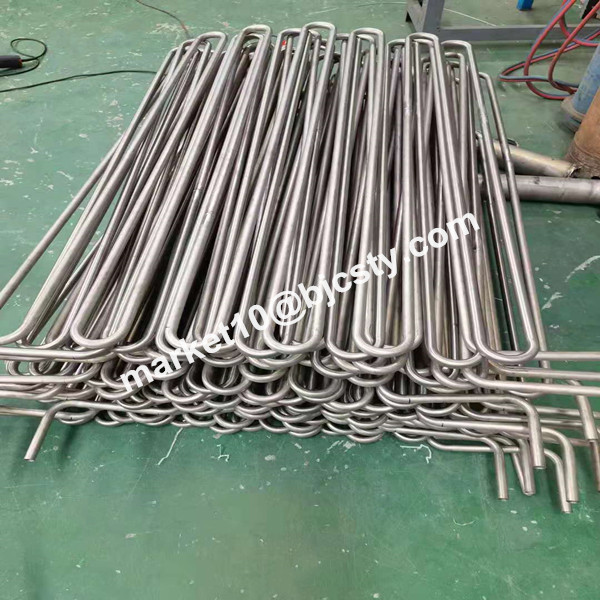

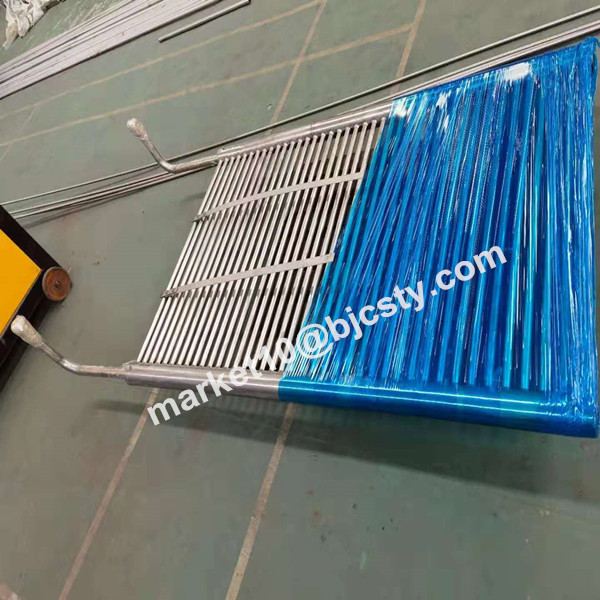

Titanium Spiral Piping Types:

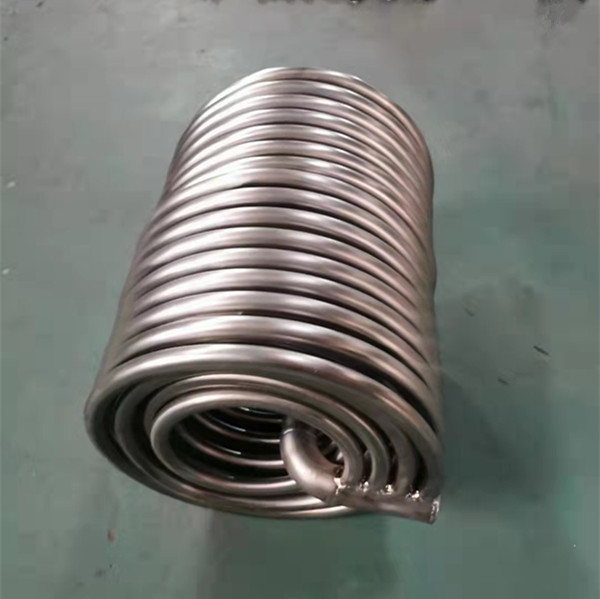

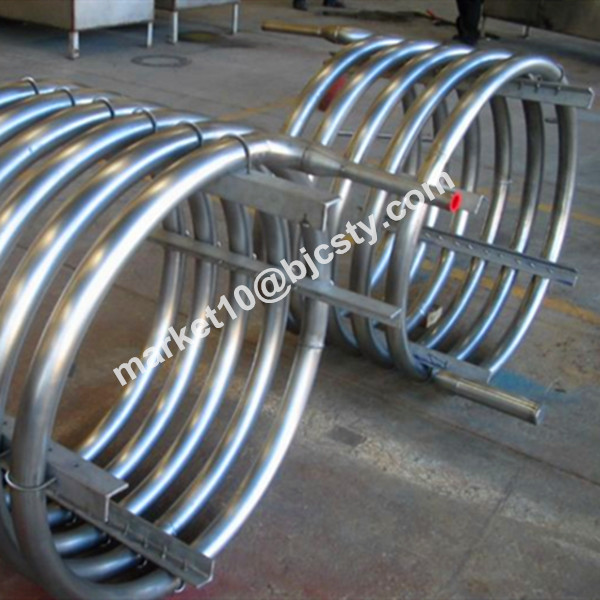

Helical coils
Tube in tube coils
Serpentine coils
Zigzag coils
Box coils
...
Titanium Coils Applications:
Oil and Gas Industry--Power Plant Industry--Marine Industry--Seawater desalination industry--Plating and anodizing industry--Chemical and petrochemical industry--Pulp and paper industry--Medical industry--Nuclear industry
Mechanical Properties of Titanium Metal
|
ASTM Grade
|
Alloy composition | Tensile strength | Yield strength | Elongation % | ||
| ksi | Mpa | ksi | Mpa | |||
|
GR1
|
Unallyed Ti(Pure)35A-CP1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | Unallyed Ti(Pure)50A-CP2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10 |
| GR9 | Ti 3AI 2.5V | 90 | 620 | 70 | 483 | 15 |
Except anti-corrosion resistance and light weight of titanium coils, titanium coils also can withstand high temperature and low temperature working conditions, also titanium tube coil is nonmagnetic, no rusting, maintain it's super silver-grey with a metallic shine metal color. Titanium coils can help save the workforce, reduce labor intensity, and reduce maintaining costs, prolong the equipments serving life.
Welcome to contact us and send us your inquiry.
Tags: Immersing cooling coil, heat exchanger coils, swimming pool titanium coil
