Heavy Wall Titanium Welded Pipes Gr.2 Titanium Pipe Spools

Place of Origin	Baoji City, China
Brand Name	Changsheng
Certification	ISO9001:2015
Model Number	Heavy Wall Titanium Welded Pipes
Minimum Order Quantity	100kg
Price	USD 16.0/KG - USD 18.0/KG
Packaging Details	Soft film wrapped inside, export standard crate outside.
Delivery Time	20-25 work days
Payment Terms	L/C, T/T
Supply Ability	60 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Products	Titanium Welded Pipes In Gr2	Materials	Pure Titanium In Gr.2
Standards	ASTM B862	Keywords	Heavy Wall Welded Pipes
Max. Diameter	OD2300mm	Surface	Acid Washing Surface/Sandblasting Surface
Application	Heat Exchangers, Pressure Vessels, Pipe Spools	Other Material	Titanium In Gr1 And Gr12
Factory Certificate	ISO 9001:2015
Highlight	Heavy Wall Titanium Welded Pipes , Pressure Vessels Titanium Pipe Spools , Gr.2 Titanium Welded Pipes

Leave a Message

Product Description

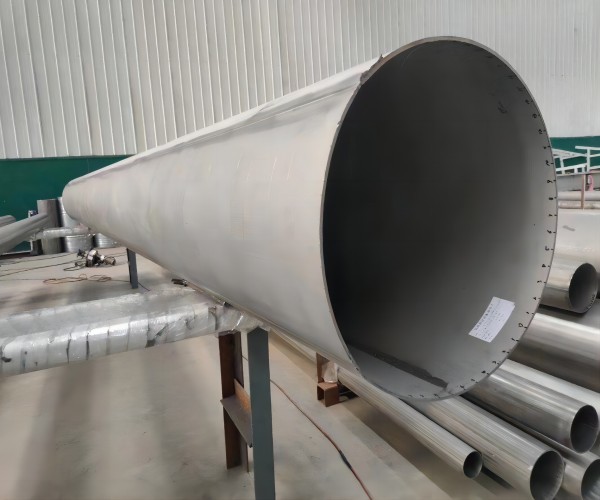

Heavy Wall Titanium Welded Pipes Gr.2 Titanium Pipe Spools

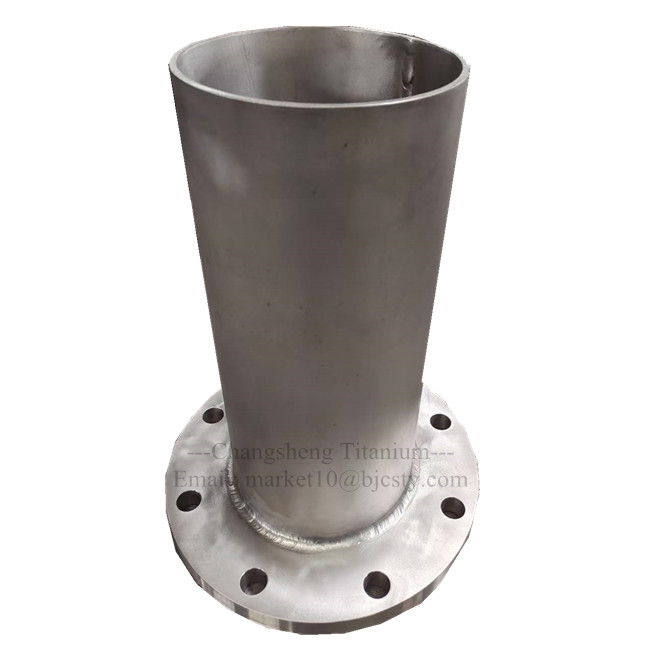

Heavy wall Titanium welded pipes combined with titanium flanges, titanium stub ends by welding or threading, which is widely used in Oil & Gas, Pulp & Paper, Chemical, Petrochemical, Water treatment, Fume treatment, Shipbuilding, Mining, Power generation, etc,.

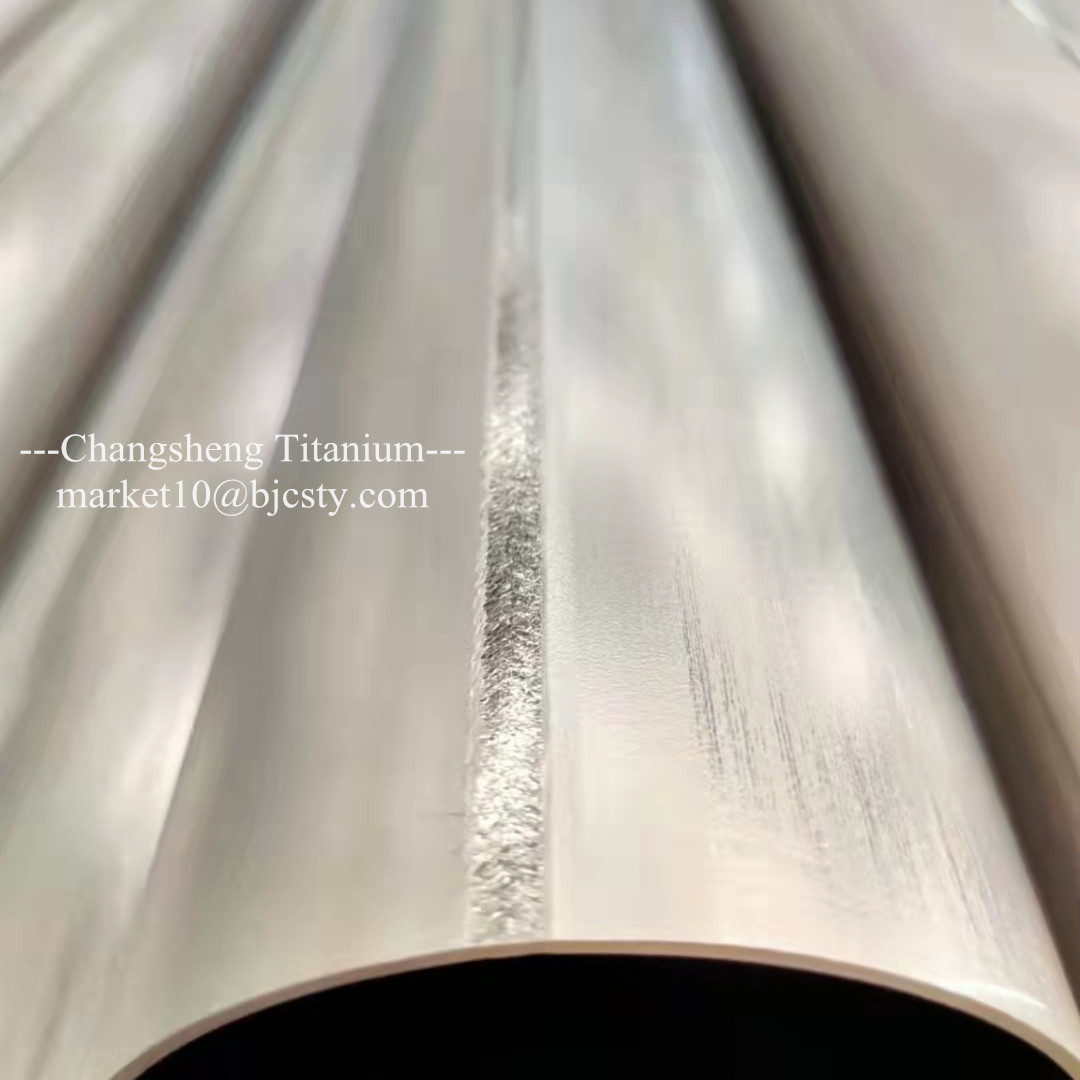

Welded pipe in titanium Gr.2 mainly used for condensers in power plant, heat exchangers in desalination, and many other corrosion resistance fields. Titanium welded tubes as the alternative material of stainless steel welded tubes, no pollution, less maintenance, long life span, and also light weight and anti-corrosion. We supply Gr2 titanium welded tubes, Gr12 titanium welded tubes, the main advantages of our welded tubes are for their uniform wall thickness and uniform tolerance. Welded tubes and welded pipes used as condensing pipe, heat exchange pipe and fluid conveying pipe.

We manufacture welded pipes in the following materials: Titanium Gr1 Gr2 Gr12

Manufacturing Standard: ASTM B862

Production range: OD max.2300mm. Wall thickness: 5mm-30.0mm. Length within:15m full length or cut-to-size

Testing: Ultrasonic test, Eddy current inspection, Hydraulic test

Processing: welding(MIG, automatic arc-welding process or other method of welding)

Titanium Welded Tubes Regular Spes:

Diameters: φ25, φ32, φ38, φ57, φ76, φ89, φ108, φ114, φ133, φ141, φ159, φ168, φ219, φ273, φ325, φ355, φ377, φ406, φ426, φ480, etc,.

Titanium Welded Pipes Features:

1. High strength: Titanium welded pipes have extremely high strength and toughness, and can withstand pressure and impact in extreme environments.

2. Corrosion resistance: Titanium welded pipes have excellent corrosion resistance and can be used in a variety of harsh environments.

3. High temperature performance: Titanium welded pipes have good high temperature performance and can be used in high temperature environments.

4. Lightweight: Titanium welded pipes have a lower density and strength ratio, which can reduce the weight of the entire structure.

Titanium Welded Pipes Mechanical Properties:

ASTM Grade	Alloy composition	Tensile strength		Yield strength		Elongation %
ASTM Grade	Alloy composition	ksi	Mpa	ksi	Mpa	Elongation %
GR1	Unalloyed Ti(Pure)35A-CP1	35	240	25	170	24
GR2	Unalloyed Ti(Pure)50A-CP2	50	345	40	275	20
GR12	Ti-0.3Mo-0.8Ni	70	483	50	345	18

Titanium Pipe and Titanium Tube Industrial Applications

Oil and Gas Industry

Power Plant Industry
Marine Industry

Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry

Plating and anodizing industry
Medical industry
Nuclear industry

Sports equipment(Bicycle, Wheelchair, etc,.)

Tags: Gr.2 titanium welded tube, welded titanium pipes, Titanium Welded pipe spools
