RuO2-IrO2 Coating Gr1 Titanium Electrode For Sodium Hypochlorite Generator Swimming Pool

Place of Origin	China baoji
Brand Name	CSTY
Certification	ISO9001
Model Number	gr1 gr2
Minimum Order Quantity	1PC
Price	USD50-300 per pcs
Packaging Details	standard export wooden case package
Delivery Time	7-30days
Payment Terms	L/C, T/T
Supply Ability	10000Pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Grade	Gr1,99.99% Titanium,mixed Ir-Ta As Coating	Powder Or Not	Not Powder
Technique	Brush Coating	Application	Chlor-alkali Industry, Water Treatments, Swimming Pool
Dimensions	Customized,Customers' Requirement	Shape	According To Client's Drawing
Keyword	MMO Coating Titanium Anode	Coating	Customer's Requirements,mixed Ruthenium-Iridium Oxide Or Platinum As Coating
Highlight	RuO2-IrO2 coating gr1 titanium electrode , Sodium hypochlorite generator gr1 titanium electrode , Swimming pool gr1 titanium electrode

Leave a Message

Product Description

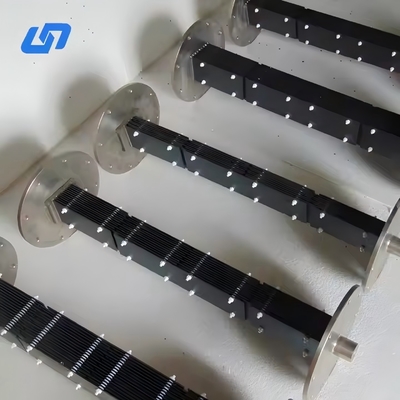

RuO2-IrO2 coating gr1 titanium electrode for Sodium hypochlorite generator swimming pool

MMO Coated Electrolysis Titanium Electroder

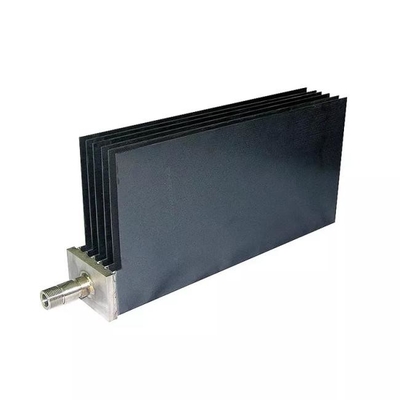

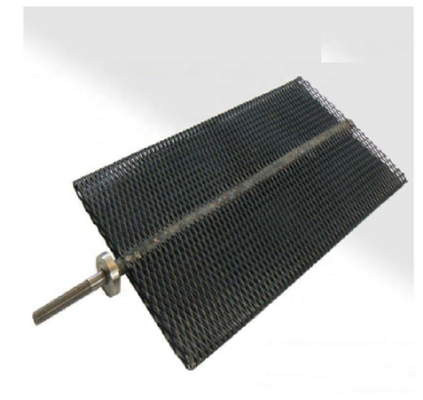

* Shape: Mesh, Plate, Basket, Rod, Tubular
* Working Current: < 8000 A/m2
* Workmanship: Plating
* Coating Material: Pt, Ir, Ru, etc.
* Noble Metal Content: ≥ 21.48 g/m2
* Coating Thickness: 0.2-15μm
* Temperature: < 80℃
* PH Value: 1-12

Properties: application-specific design, tight adhesion between platinum layer and base titanium
material, stable performance, high current and low voltage, even coating.
Application: seawater, gold potassium cyanide + citric acid, horizontal plating, pulse plating, athode
protection. It can be used in acidic or alkaline electroplating solution.
Technique : Sand blasting ; Annealing ; Straightening ; Acid Washing ; Brush Plating ; Sintering
About Titanium Anode Basic Parameter

Titanium Substrate	grade	N	C	H	Fe	O	Ti
	1	0.03	0.08	0.015	0.2	0.18	bal
	2	0.03	0.05	0.015	0.3	0.25	bal
Regular Coating	Platinum:0.5um/1um; Mixed Iridium and Platinum:0.5um/1um; Mixed Ruthenium and Iridium:6-8um; Mixed Iridium and Tantalum:6-8um.
Characteristics	Coating: Mixed Ruthenium and Iridium; Chlorine evolution potential: <1.13V; Polarizability: ≤40mv; Accelerated life: ≥3000min under current density 1000A/m2; Anode strengthening weightlessness: ≤10mg; Suitable working environment: Solution contains Cl-, PH<=7
Coating contents & life span	8 grams/m2: >6,000 hours; 10 grams/m2: > 8,000 hours; 12 grams/m2: >10,000 hours; 15 grams/m2: >12,000 hours; 20 grams/m2: >15,000 hours
Working parameters	Current density: <600A/m2; Temperature: 40-60°C; Chlorine concentration: About 30~50grams/liter; Polarity reversal: suitable; Reversal frequency: 2-4 hours
Regular sizes	63.5150mm, 13pcs/set; 64110mm, 7pcs/set; 80120mm, 1pcs/set; 30183mm, 7pcs/set; 80*185mm, 7pcs/set
Applications	1.Water ionizer or water electrolysis a. Making alkaline and acidic water 2.Waste water treatment a.Organic sewage treatment, b. Chemical sewage treatment, c. Pesticide sewage treatment, d. Drinking water disinfection, e. Bleaching & dyeing, f. Swimming pool g. Hospital sewage treatment, h. Food industry disinfection etc. 3.Sodium Hypochlorite Generator & Chlorinator a. Swimming pool water treatment b. Water sterilization & water purification, 4.Sea water electrolysis or Electrodialysis a. Desalination, b. Material recycling in the waste water, c. Paper making, Chemical, medical industry, d. Light industry, Metallurgy, e. Making fresh water, etc. 5.Chlor-Alkali Industry 6.Electroplating a. Electrolating Au,Cr,Zn,Cu.etc 7.MMO Cathodic Protection

RuO2-IrO2 Coating Gr1 Titanium Electrode For Sodium Hypochlorite Generator Swimming Pool 0

Packing and Shipping
1. Packing with moisture-proof paper;
2. Packing with foam plastics in all sides;
3. Packing products in standard wooden cases.
Shipping
Various Mode of Transportation for You :
1. Air transportation
2. Sea transportation
3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.
