ISO 9001 Certified Producing Titanium Square Tube With Slotted Angles
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mechanical Properties | Tensile Strength: 345MPa, Yield Strength: 275MPa, Elongation: 20% | Sample | Available |
|---|---|---|---|
| Weight | Actual Weight | Advantage | Low Price,Anti-Corrosion |
| Others Grade | Gr1 GR2 GR5 GR7 | Factory Certificate | ISO 9001:2015 |
| Inventory | Large Stock, Ready To Go | Wall Thickness | 1-8mm |
| Highlight | Slotted Angles Titanium Square Tube,ISO 9001 Certified Square Tube |
||
Product Description
Manufacturer of Titanium square tube Slotted titanium Angle titanium
Main business: production, research and development and sales of non-ferrous metal titanium zirconium profiles

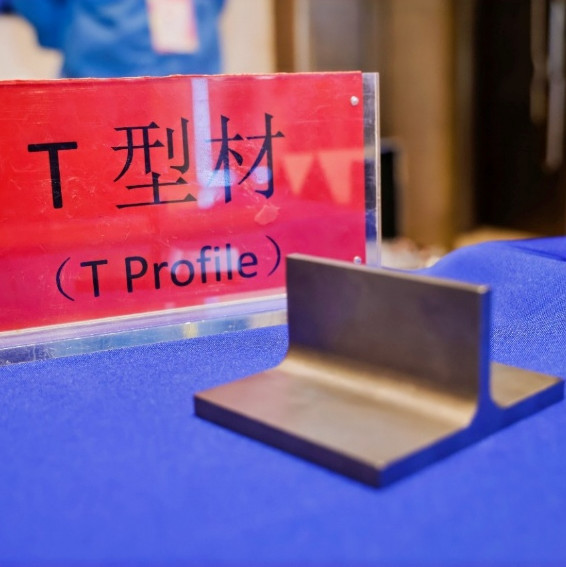

Main products: L profiles, U profiles, H profiles, T profiles, square tubes, rectangular tubes, etc.

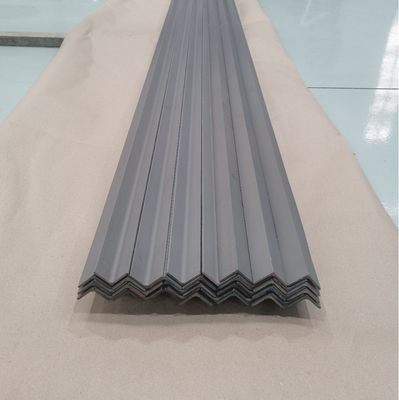

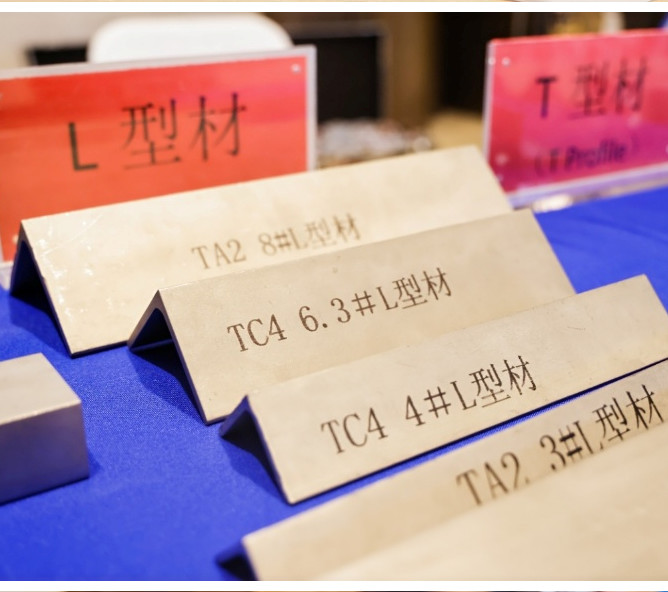

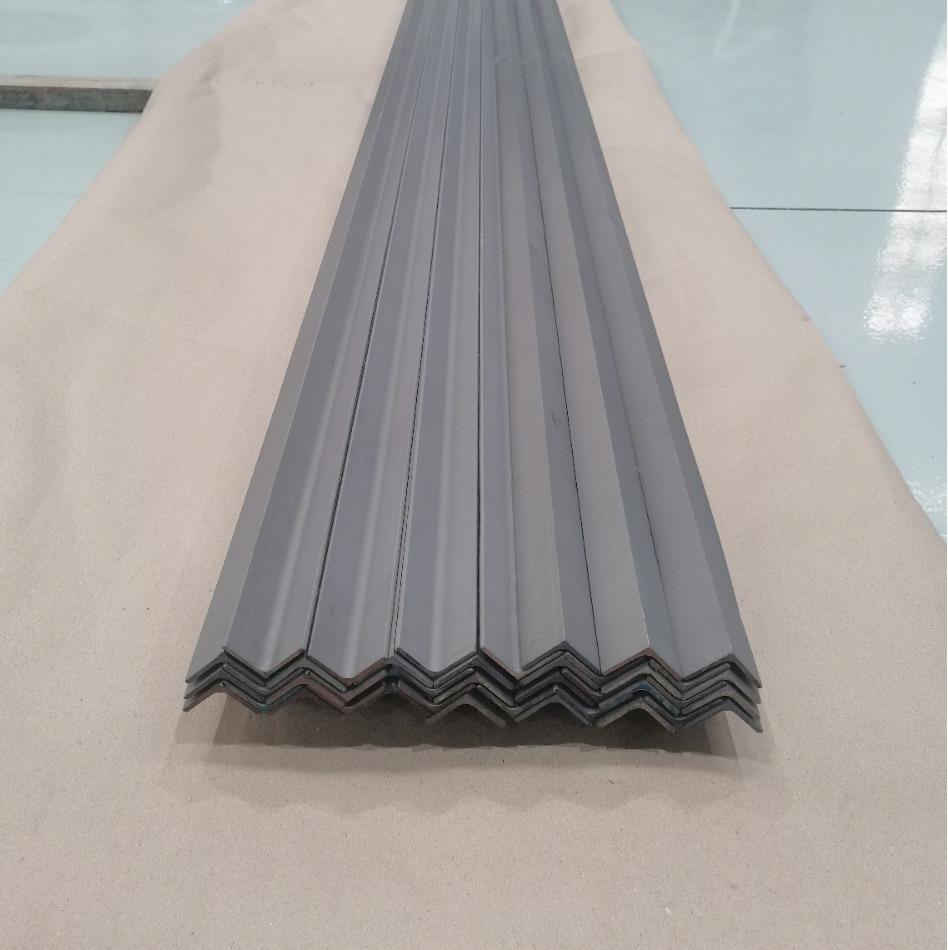

L profile specifications: 3# 4# 5# 6.3# 8#

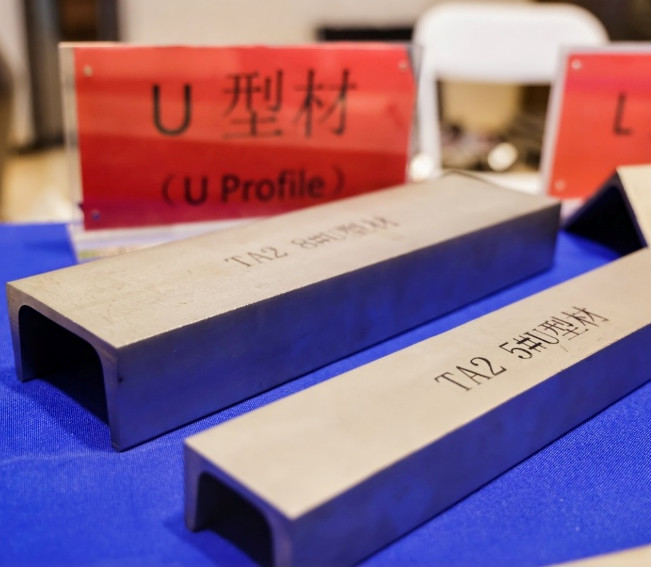

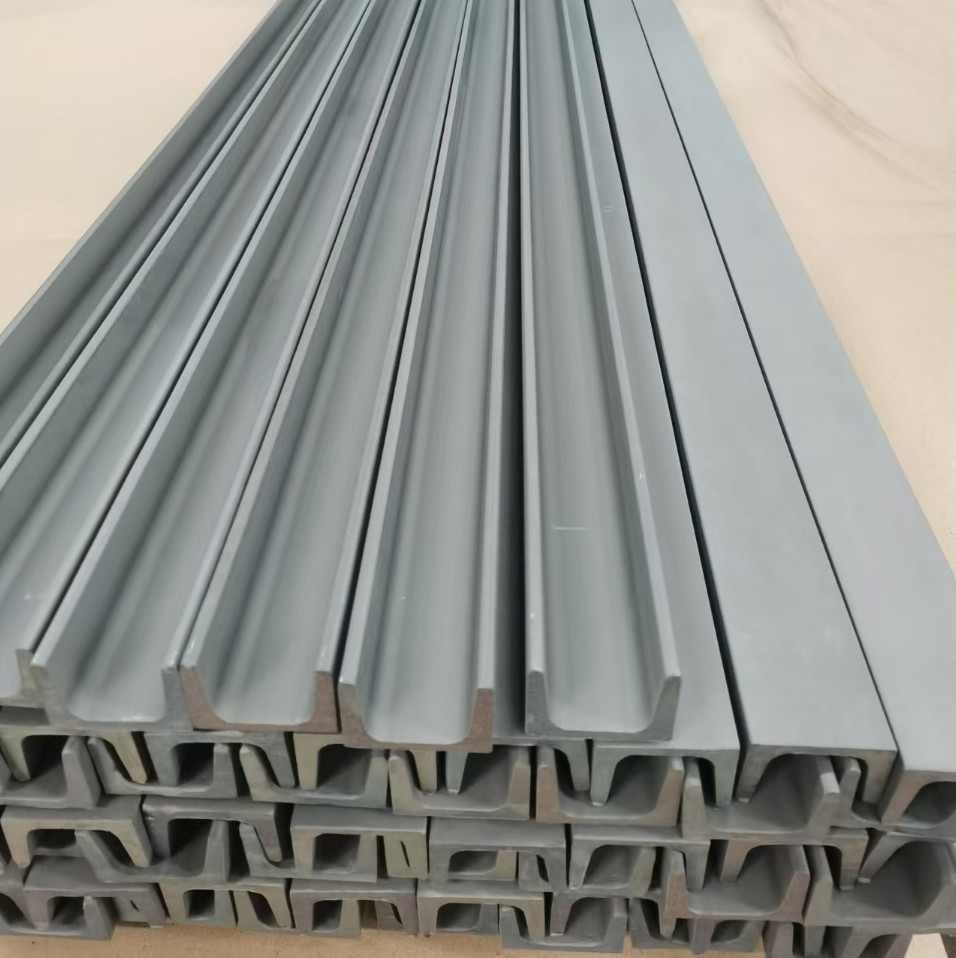

U profile specifications: 5# 6.3# 8# 10# 12#

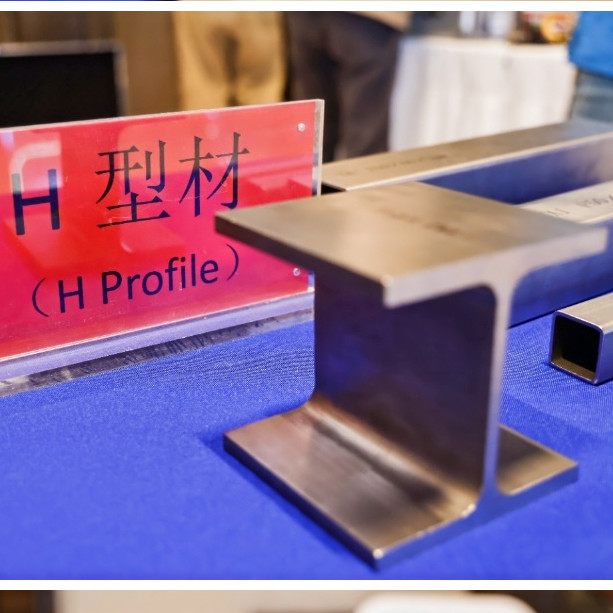

H profile specifications: 10# 15# 20#

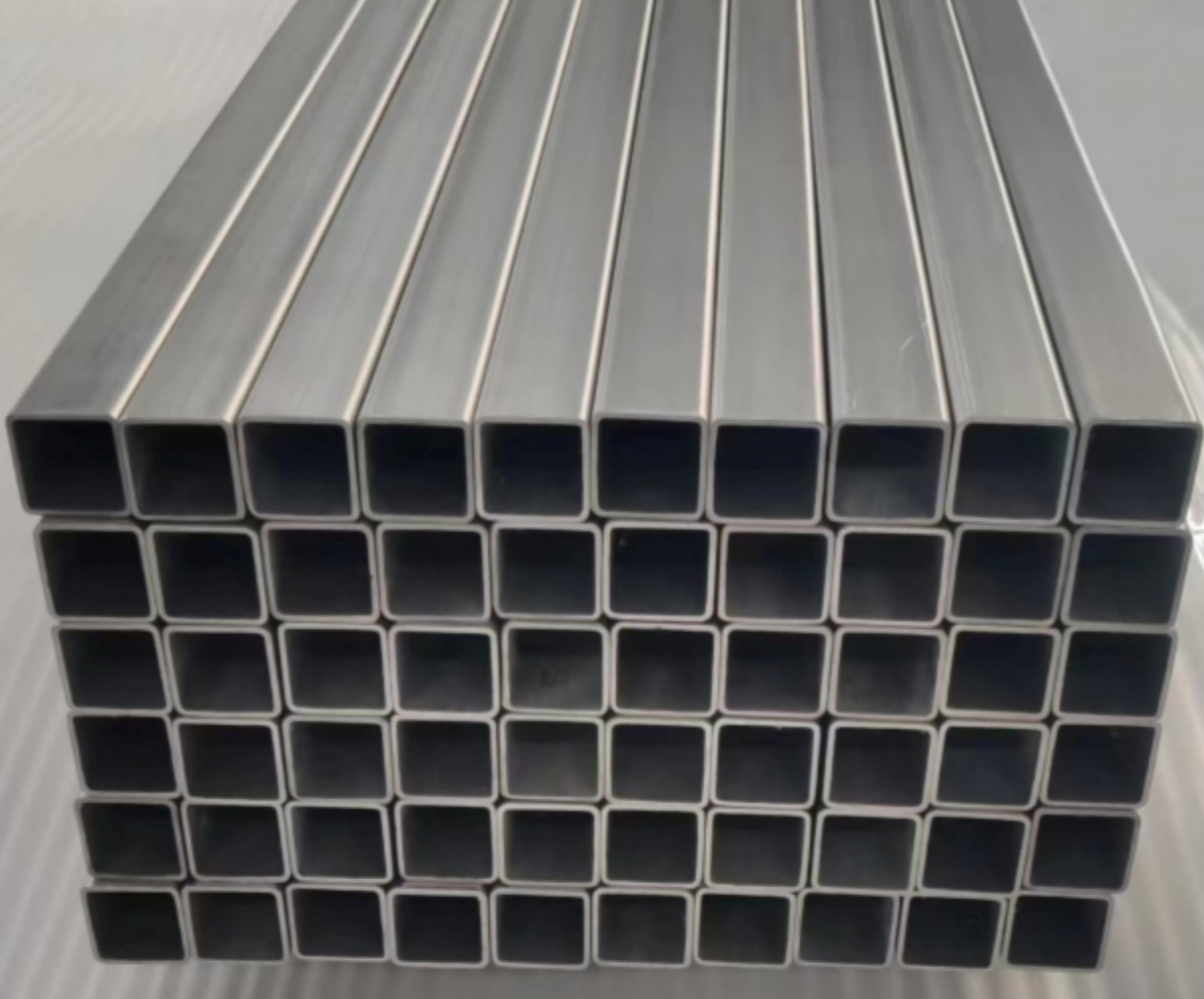

Square and rectangular tube specifications: 13 square to 500 square
Origin: Baoji, Shaanxi (self-owned factory welcomes inspection and cooperation)
Source factory, complete variety, good price, fast delivery
| NO. | COMMODITY | DIMMENTION (MM) |
LENGTH (MM) |
THEORETICAL WEIGHT/PC (KG) |
REMARK |
| 1 | 3# L Profile | 30*30*3 | 6000 | 4.73 | Equal Sides |
| 2 | 3# L Profile | 30*30*4 | 6000 | 5.15 | Equal Sides |
| 3 | 4# L Profile | 40*40*3 | 6000 | 6.38 | Equal Sides |
| 4 | 4# L Profile | 40*40*4 | 6000 | 8.34 | Equal Sides |
| 5 | 5# L Profile | 50*50*3 | 6000 | 8.03 | Equal Sides |
| 6 | 5# L Profile | 50*50*4 | 6000 | 10.54 | Equal Sides |
| 7 | 6# L Profile | 63*63*4 | 6000 | 13.46 | Equal Sides |
| 8 | 6# L Profile | 63*63*5 | 6000 | 16.62 | Equal Sides |
| 9 | 8# L Profile | 80*80*5 | 6000 | 21.41 | Equal Sides |
| 10 | 8# L Profile | 80*80*6 | 6000 | 25.42 | Equal Sides |
| 11 | 5# U Profile | 50*37*4.5 | 6000 | 18.74 | Equal Sides |
| 12 | 6.3# U Profile | 63*40*4.8 | 6000 | 22.86 | Equal Sides |
| 13 | 8# U Profile | 80*43*5 | 6000 | 27.73 | Equal Sides |
| 14 | 10# U Profile | 100*48*5.3 | 6000 | 34.49 | Equal Sides |
| 15 | 12# U Profile | 120*53*5.5 | 6000 | 41.56 | Equal Sides |
| NO. | COMMODITY | SEPECIFICATION W*H*L(MM) |
WALL THICKNESS (MM) |
THEORETICAL WEIGHT/PC (KG) |
REMARK |
| 1 | Square Tube | 20*20*6000 | 0.8 | 1.668 | Seamless Tube |
| 1.0 | 2.070 | ||||
| 1.5 | 3.042 | ||||
| 2.0 | 3.972 | ||||
| 2 | Rectangular Tube Square Tube |
20*40*6000 30*30*6000 |
1.0 | 3.318 | Seamless Tube |
| 1.2 | 3.750 | ||||
| 1.5 | 4.650 | ||||
| 2.0 | 6.654 | ||||
| 3 | Rectangular Tube | 30*50*6000 | 1.0 | 4.221 | Seamless Tube |
| 1.5 | 6.250 | ||||
| 2.0 | 8.226 | ||||
| 3.0 | 12.010 | ||||
| 4 | Square Tube | 40*40*6000 | 1.0 | 4.230 | Seamless Tube |
| 1.5 | 6.280 | ||||
| 2.0 | 8.292 | ||||
| 3.0 | 12.180 | ||||
| 5 | Rectangular Tube Square Tube |
40*60*6000 50*50*6000 |
1.5 | 7.836 | Seamless Tube |
| 2.0 | 10.360 | ||||
| 3.0 | 15.290 | ||||
| 4.0 | 20.050 | ||||
| 6 | Rectangular Tube Square Tube |
40*80*6000 50*70*6000 60*60*6000 |
1.5 | 9.490 | Seamless Tube |
| 2.0 | 12.570 | ||||
| 3.0 | 18.600 | ||||
| 4.0 | 24.460 | ||||
| 7 | Rectangular Tube Square Tube |
60*80*6000 70*70*6000 |
2.0 | 14.780 | Seamless Tube |
| 3.0 | 21.910 | ||||
| 4.0 | 28.880 | ||||
| 5.0 | 35.680 | ||||
| 8 | Rectangular Tube | 50*100*6000 | 3.0 | 23.440 | Welded Tube One weld seam |
| 4.0 | 30.870 | ||||
| 9 | Square Tube | 80*80*6000 | 3.0 | 25.230 | Welded Tube One weld seam |
| 4.0 | 33.300 | ||||
| 5.0 | 41.200 | ||||
| 10 | Rectangular Tube Square Tube |
80*100*6000 | 4.0 | 37.380 | Seamless Tube |
| 5.0 | 46.300 | ||||
| 6.0 | 50.050 | ||||
| 8.0 | 72.050 |
