ASTM B265 45mm Ti6Al4V Gr5 Titanium Plate 25mm 30mm Thick for Engine Compressor Components

Place of Origin	China
Brand Name	Changsheng
Certification	ISO9001:2015
Model Number	Ti6Al4V Gr5 Titanium Plate
Minimum Order Quantity	100 kg
Price	USD 25.0/kg - USD 35.0/kg
Packaging Details	Soft film wrapped inside, export standard crate outside.
Delivery Time	3-5 work days
Payment Terms	L/C, T/T
Supply Ability	60 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Titanium Ti6Al4V, UNS R56400, Ti Gr5	Standard	ASTM B265 AMS4911
Applications	Oil, Marine, Petrochemical, Power Plant, Machining	Supply State	Annealed
Sizes	0.5mm To 100mm	Certification	ISO9001:2015
Advantages	Competitive Price, Short Lead Time And On-time Delivery	Inventory	0.8mm ~100mm, Various Sizes In Stock
Key Word	Ti 6Al4V Alloy Titanium Plates
Highlight	30mm Thick Titanium Plate , ASTM B265 Titanium Plate , Engine Compressor Components Titanium Plate

Leave a Message

Product Description

ASTM B265 45mm Ti6Al4V Gr5 Titanium Plate Price 25mm 30mm Thick for Engine Compressor Components

Gr5 Titanium plate

Composition: Ti 6Al 4V

Standard: ASTM B265

Spec.: 25/30/45mm * 1000*2000mm

Weight (kg/pc): 225.5/ 270.6/ 405.9kg

Surface: Acid pickling surface

HS Code: 810890

Place of origin: Baoji City, China

--- Characteristics of Grade 5 Titanium Alloy Plate ---

Gr5 is also called Ti-6Al-4V, it has poor stamping properties and good thermoplasticity. It can be welded in various forms, the strength of the welded joint can reach 90% of the strength of the base metal. Machining performance is still good, it is necessary to use carbide cutting tools, large cutting speed, slow speed, sufficient cooling. Good corrosion resistance and good thermal stability. It is one of the most widely used titanium alloys to make long-term work parts below 400 ℃.

We have large inventory of titanium alloy plates in titanium Grade 5, Ti6Al4V Gr5 titanium plates are workhorse of so many titanium grades materials. Gr5 titanium alloy plate is widely used in petrochemical, marine, offshore, power plant, aerospace, metallurgy, sports and many other fields.

As a leading supplier of titanium plate in China, we have ASTM B265 titanium plate, ASME B265 titanium plate, AMS 4911 titanium plate, and medical grade ASTM F136 titanium plate. The titanium plates we have are in great surface, super mechenical properties, excellent welding performance and accurate dimensions. 6Al-4V per ASTM B265 for Titanium Sheet, Strip, and Plate in the Annealed Condition. We offer both Gr5 Ti6Al4V and Gr23 Ti6Al4V Eli sheet and plate. Titanium plates are well know for it's good heat resistance, corrosion resistance, elasticity resistance and formability.

Gr5 Titanium Plates and Titanium Sheets Sizes:

Thickness: 0.5mm ~100mm

Width: max. 2500mm

Length: max. 5000mm

Surface: pickling surface, milled surface, sandblasting surface, bright surface, etc,.

Standard: in compliant with ASTM B265, ASTM F136, AMS 4911, etc,.

Services offered: Waterjet cutting, laser cutting, welding, shape cutting, drilling, etc,.

Mechanical Properties of of Ti6Al4V Titanium Plate (Min.):

Grade	Thickness(mm)	Tensile Strength	Yield Strength
Gr.5 6Al-4V	0.8~25.0	≥895MPa	≥830MPa

6Al-4V is known as the workhorse of the aerospace industry because it is by far the most common Titanium alloy. 6Al-4V is 30% stronger than steel while with the weight 50% lighter. Commonly referred to as Ti 6AL-4V (or Ti 6-4), this designation refers to its chemical composition of almost 90% titanium, 6% aluminum, 4% vanadium, 0.25% (max) iron and 0.2% (max) oxygen. 6Al-4V is an alpha-beta alloy. Ti 6Al-4V offers a combination of high strength, light weight, formability and corrosion resistance which have made it a most common used high temprature titanium alloy plate and sheet for shipbuilding, aerospace industry, power plants, desalination, metal fabricating industries.

6Al-4V Plate Thickness ranges from >4.75mm to 60mm Thick, hot rolling.

6Al-4V Sheet Thickness range from 0.3mm to 6.0mmThick, cold rolling.

Due to customization, please contact us for satisfying your individualized requirement!

Titanium Plate Ti-6-4 Types

Anti-corrosion titanium alloy plate

Heavy titanium plate

Thin titanium sheet

Spectacle titanium sheet Gr5

UNS R56400 titanium plate

High strength titanium sheet

High temperature titanium plate

Aerospace titanium plate

Custom titanium sheet and plate

Our Services & Strength

1-Set up from 2001, more than 20 years manufacturering experiences in titanium industry.

2-Two real factory entitle, two complete production line of titanium bar and titanium tube, keep sure the high quality and delivery time.
3-ISO Quality Management System, and exclusive letters patent in titanium tube.
4-Professional 2 foreign sales teams, started 2008 years, 12 years service experiences.

5-Short lead time and on-time delivery.

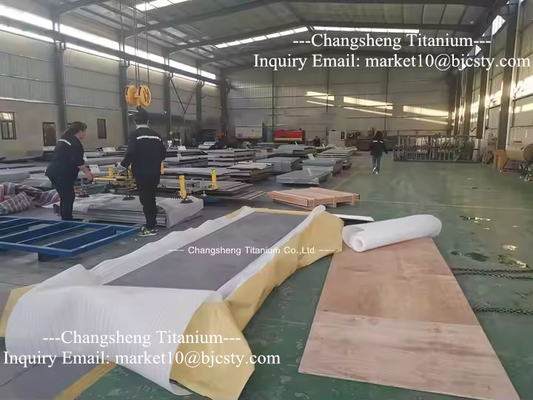

Gr.5 Titanium Plate Packaging

--- Applications of Titanium Grade 5 Plates ---

Titanium alloy is mainly used to make compressor parts for aircraft engines, and can be used to manufacture compressor disks and blades. Followed by the structural components of rockets, missiles and high-speed aircraft. In the 1970s, the amount of titanium alloy used in aero engines generally accounted for 20% to 30% of the total weight of the structure. It was mainly used to manufacture compressor components, such as forged titanium fans, compressor disks and blades, cast titanium compressor casings, and intermediaries. Case, bearing housing, etc. The spacecraft mainly uses the high specific strength, corrosion resistance and low temperature resistance of titanium alloys to manufacture various pressure vessels, fuel storage tanks, fasteners, instrument bands, frames and rocket shells. Artificial earth satellites, lunar modules, manned spacecraft and space shuttles also use titanium alloy plate weldments.
