Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance

  • Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance
  • Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance
  • Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance
  • Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance
Place of Origin Baoji City, China
Brand Name Changsheng Titanium
Certification ISO9001:2015
Model Number Commercially pure titanium Gr4
Minimum Order Quantity 50kg
Price $22.1/kg-$25.8/kg
Packaging Details Standard export package
Delivery Time 3 to 25 work days
Supply Ability 60 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Gr4 Titanium Round Bars Material Commercially Pure Titanium In Grade 4 UNS R50700
Diameter 3mm To 450mm Diameter Tolerance H7, H8, H9
Length As Per Request Application CNC Machining, CAD/CAM Abutments, Turbine Blades, Structural Parts
Test Report Provide Factory MTC Or Third Party Test Report Quality Assurance Titanium Sponge Material, Standardized Production
Key Words Corrosion Resistance Titanium Round Bars Advantage Large Stock, Short Lead Time
Highlight

Grade 4 Titanium Round Bar

,

High Strength Titanium Round Bar
Leave a Message
Product Description

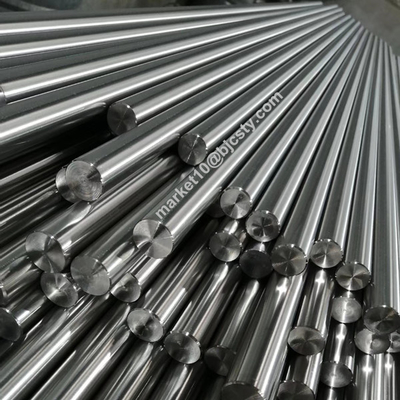

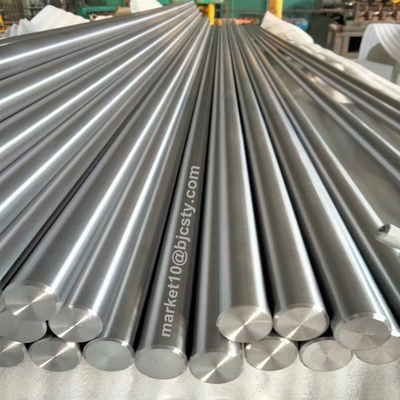

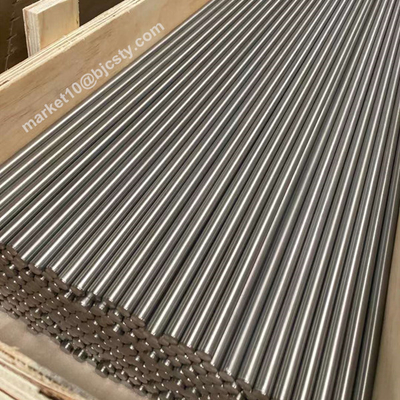

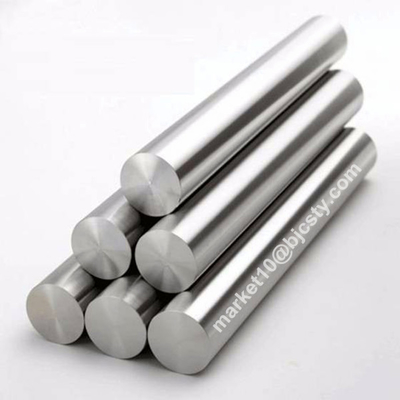

Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance



We supply high quality Grade 4 titanium bars. Grade 4 titanium owns highest strength compared with the other three commercially pure titanium material, the minimum requested tensile strength is greater than 550Mpa, while Grade 2 titanium the requested min tensile strength is greater than 345Mpa. Gr.4 titanium round bars are often used in the manufacture of high-strength and high-corrosion resistance materials, such as in aerospace, Marine, chemical and medical fields.



Supply Diameter: OD3mm to 450mm

Shipping Length: random length and custom length, all as per request.

Diameter Tolerance: h7,h8,h9



Designation Grade 4/Gr4
UNS UNS R50700
Standard ASTM B348 ASTM F136 AMS4928
Category Commercially Pure Titanium
Property Corrosion Resistance, high strength, can be cold formed, but has lower ductility
Density 4.506 g/m³



Physical and Mechanical Properties



  Alloy composition Tensile strength Yield strength Elongation %
ksi Mpa ksi Mpa
GR1 Unalloyed Ti(Pure)35A-CP1 35 240 25 170 24
GR2 Unalloyed Ti(Pure)50A-CP2 50 345 40 275 20
GR4 Unalloyed Ti(Pure)80A-CP4 80 550 70 483 15
GR5 Ti 6Al 4V 130 895 120 828 10
GR7 Ti-Pd 50 345 40 275 20
GR9 Ti 3AI 2.5V 90 620 70 483 15F
GR12 Ti-0.3Mo-0.8Ni 70 483 50 345 18

Gr4 titanium has high strength, low density, good corrosion resistance, high fatigue resistance and high temperature resistance and other physical properties. For 0-427°C working environment, intermittent temperature up to 538°C can be welded.



Processing Properties

Gr4 titanium rod has good processing properties and can be used for cutting, drilling, milling, welding and so on.



Application Fields

Gr4 titanium bars are often used in the manufacture of aviation engine parts, aircraft fuselages and aviation electrical joints and other aviation devices, also used in the manufacture of chemical equipment, medical equipment and Marine engineering equipment and other high strength, high corrosion resistance products.

Supply Condition Annealed
Aircraft Turbines Engine Components Chemical Processing Industrials
Marine Applications Aerospace Fasteners High-Performance Automatic Parts
Aircraft Structural Components Medical Industry Sports Equipment



Titanium Round Bar Advantages

  • Excellent biocompatibility

  • Anti-corrosion. It is not corroded in seawater, wet chlorine, chlorite and hypochlorite solutions, nitric acid, metal chlorides, sulfides and organic acids

  • Can be aesthetically veneered with ceramic

  • Non-magnetic and non-toxic
  • Good milling properties due to low hardness

  • X-ray translucent

  • Low thermal conductivity

  • Light weight

  • Tensile strength above 1100Mpa
  • Yield strength above 1000Mpa
  • Testing: Tensile strength test, yield strength test, hardness test, nondestructive testing, chemical composition test, etc,.
  • Surface quality: High precision, good finish, no cracks, peeling.



Other Ti Material We Supply:

  • Grade 1 : Commercial Pure Ti
  • Grade 2: Commercial Pure Ti
  • Grade 5: Ti-6AI-4V
  • Grade 6: Ti-5AI-2.5Sn
  • Grade 7: Ti-0.2Pb
  • Grade 9: Ti-3AI-2.5V
  • Grade 12: Ti-0.3Mo-0.8Ni
  • Grade 23: Ti-6AI-4V ELI
  • TC11: Ti-6.5Al-3.5Mo-1.5Zr-0.3Si
  • ...



Titanium Round Bars



Grade 4 Titanium Round Bar With High-Strength And High-Corrosion Resistance 0

We are titanium bar manufacturer, locates at Baoji City, China, which also called "Titanium Valley of China". BaojI City Changsheng Titanium Company is ISO9001:2015 certified. Baoji City---it's titanium processing equipment, technical level and production capacity are ranked the first in China, the production capacity accounts for about 60% of the country, the market share accounts for 85% of the domestic titanium processing market, accounting for 22% of the world output, undertake the production task of more than 90% of China's high-end titanium products, known as China's "Titanium Valley". We supply high quality titanium bars with good price and short lead time. Our main exporting areas include United states, Canada, Germany, UK, France, Turkey, South Korea, Saudi Arabia, Vietnam, etc,. Welcome to send your inquiry, thanks.
